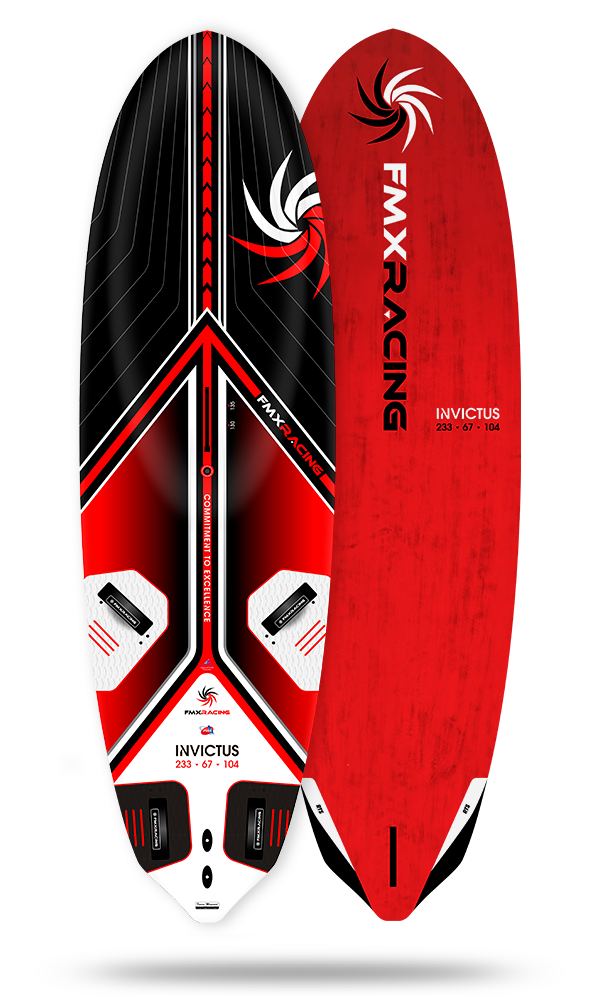

INVICTUS 104

Competition Medium-Wind Slalom

The all-new 104 is a 67cm wide ‘small medium’ model with a
wide wind range and excellent top speed with control on all points of sail.

Perfectly suited for powered up 5.8-7.8. Stable and solid trim in many different conditions.

INVICTUS 104

Competition Medium-Wind Slalom

The all-new 104 is a 67cm wide ‘small medium’ model with a
wide wind range and excellent top speed with control on all points of sail.

Perfectly suited for powered up 5.8-7.8. Stable and solid trim in many different conditions.

R&D Result

Increased rail and fin pressure to maintain excellent tracking characteristics, with an ultra stable and direct feel in a wide variety of sailing conditions.

Improved exit from the gybes whilst still maintaining a tight gybe radius with grip.

Features &
Benefits

  Durepox Xtreme ® – America’s Cup grade ultra high-tech bottom paint finish currently used by Team NZ!
  Proven faster water and air release for that extra ‘slip’ = higher speeds.
  Harder and more durable than normal paint finishes.
  A windsurfing industry first. Taking it to the next level!
  Read about it here:   https://reseneauto.co.nz/marine/team-new-zealand-latest/

•  RTS – Range Trim System – 100% carbon/high-density pvc core removable cutout plates – Multiple designs – Significantly increases the range by 20% of all slalom models

  Design A – (fitted with the board) – Best overall performance plate design striking a perfect balance between top speed, control, planing and acceleration.

  Design B – Maximum control and stability for the most difficult sailing conditions. Max. planing, close reach pointing and grip in all conditions.

•  All-new compact shape for increased control overpowered, earlier planing, better glide and increased acceleration away from the gybes.

•  Refined all-new scoop-rocker line for easier handling, explosive acceleration and top-speed in both flat water and choppy conditions.

•  Deep deck concave design  – More stability in the now flatter standing area with the front foot after the gybe improves the planing and acceleration away from the mark. New design quick transition deep recess around the mast box increases downforce and nose trim stability at high speed and lift/fin drive at low speed for all sizes.

•  Inverse Vee bottom shape – Generous vee and double concave configuration in the nose to clear the chop and create a smooth ride, transitioning to inverted vee in the tail for increased grip and power in the lower wind range and better control and stable trim when powered.

•  ‘V3 Vector Cuts’ – Proven fast straight line cutout design that facilitates clean and effortless water release. Removable plates – The next level in terms of performance and range.

•  Short Tuttle Strong Box – Double the carbon content, double the wall strength and stiffness, and built with a 100% high-density PVC sandwich body. The result – fins stay tight and the box holds the direct feeling performance even after prolonged use.

Summary

The 104 is the ultimate crossover size between high wind and medium wind slalom.

Super fast overpowered but still with very good glide and grip in the lighter winds as well, this all new model is ready to rumble with the best of them!

Specifications

◄ Swipe ►

INVICTUS
74
INVICTUS
88
INVICTUS
98
INVICTUS
104
INVICTUS
108
INVICTUS
118
INVICTUS
128
INVICTUS
138
Technology Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Length 229 cm 235 cm 235 cm 235 cm 235 cm 235 cm 228 cm 228 cm
Width 52 cm 61 cm 63 cm 67 cm 70 cm 72 cm 81 cm 85 cm
Volume 74 L 88 L 98 L 104 L 108 L 118 L 128 L 138 L
Bottom Shape DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee
Footstrap Rows 2 2 2 2 2 2 2 2
Fin Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied
Finbox Short Tuttle Short Tuttle Short Tuttle Short Tuttle Short Tuttle Deep Tuttle Foil Deep Tuttle Foil Deep Tuttle
Fin Range 22-29 cm 29-33 cm 30-34 cm 32-36 cm 34-38 cm 35-39 cm 39-44 cm 42-48 cm
Sail Range 4.7 – 7.0 m2 4.7 – 7.0 m2 5.0 – 7.0 m2 5.8 – 7.8 m2 6.3 – 8.6 m2 7.0 – 8.6 m2 7.8 – 9.2 m2 7.8 – 9.6 m2
Weight 5.0 kg 5.8 kg 5.9 kg 6.3 kg 6.5 kg 6.7 kg 7.2 kg 7.6 kg

Notes

• Weight tolerance is +/- 6%
• Hull weight does not include adjustable cutout plates
• Hull weight includes 12 extra single footstrap plugs (8 for straps, 4 for cutouts). This adds 100g so keep this in mind when comparing weights.
