HYPERION 204
Competition
Foil Race
Foil Race
The Hyperion 204 is a straight duplicate of the multiple PWA race and event winning Hyperion 184, but in a 100cm FW Class width.
All the same features that are proven on the 184 are carried over to this new 204 liter course racing thoroughbred.

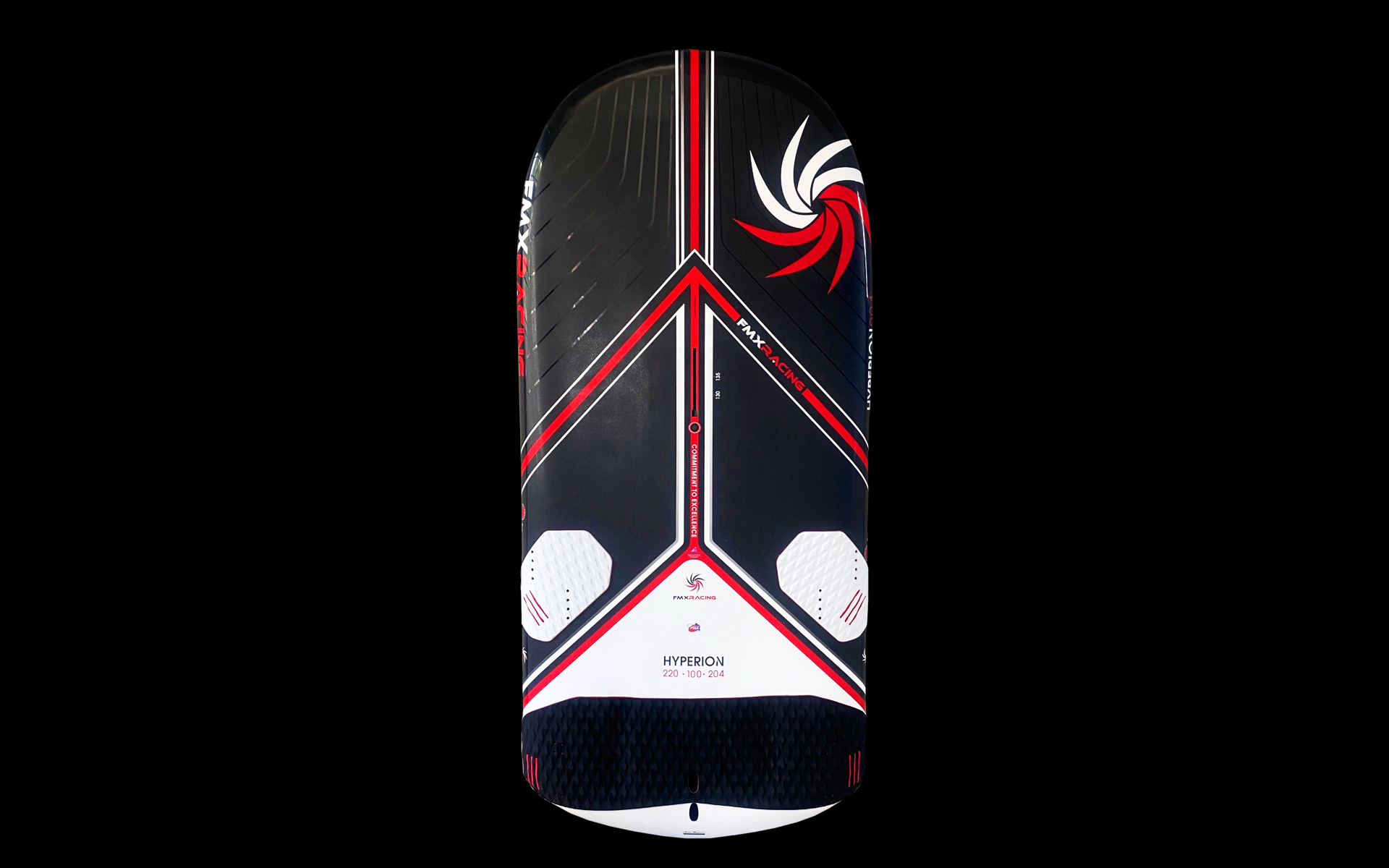

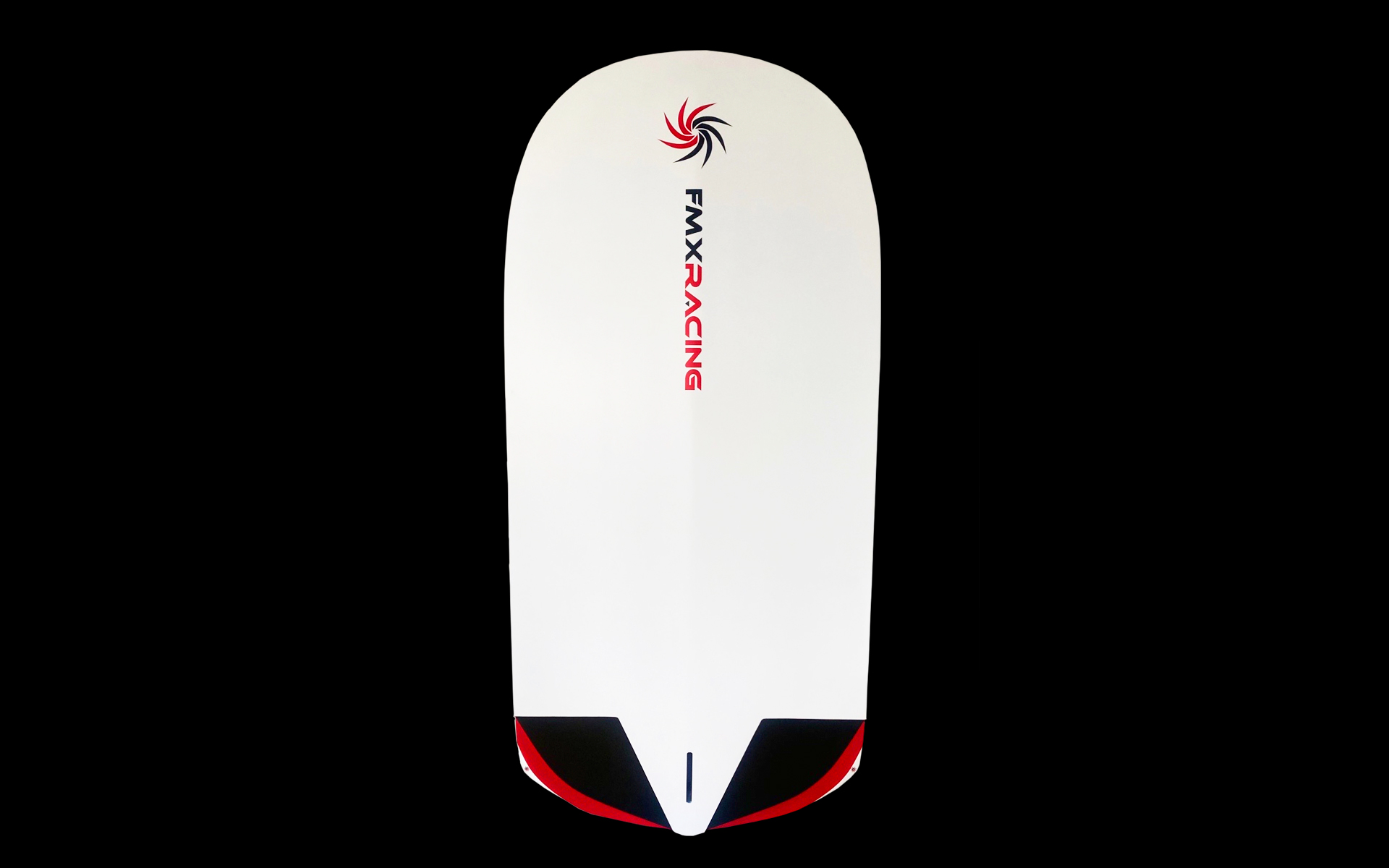

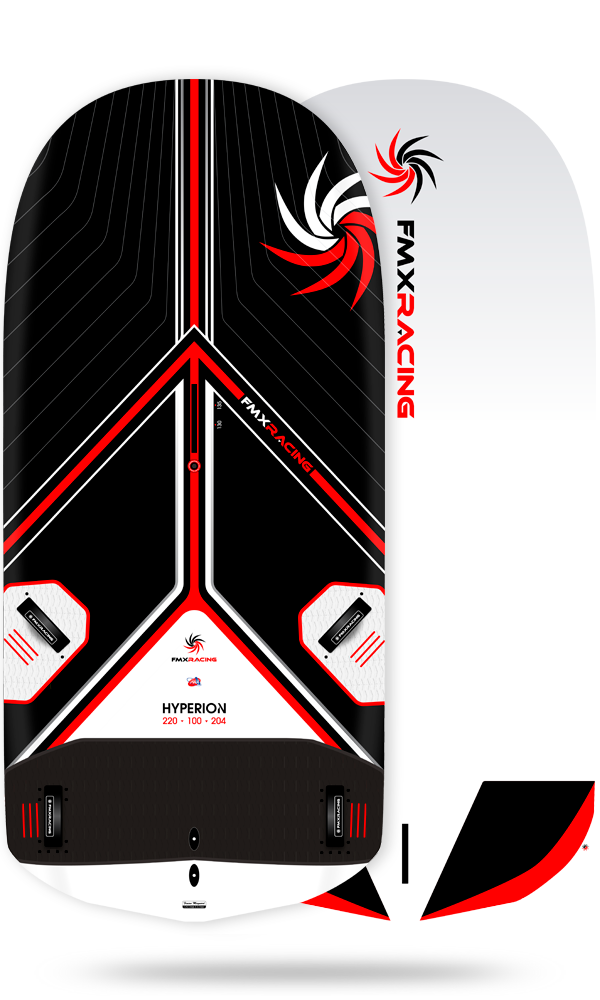

HYPERION 204
Competition Foil Race
The Hyperion 204 is a straight duplicate of the multiple PWA race and event winning Hyperion 184, but in a 100cm FW Class width.
All the same features that are proven on the 184 are carried over to this new 204 liter course racing thoroughbred.
R&D Result
More power over the foil due to the massive 99cm tail equates to higher pointing angles upwind and deeper downwind angles especially in under-powered conditions.
Features &
Benefits
Benefits
• Ultra compact and very wide nose/tail shape for increased power and angle upwind combined with solid stability downwind. Excellent glide and acceleration in the air. Very early planing due to the clever volume distribution.
• Duplicate 184 race foil scoop-rocker line for easier handling, explosive acceleration and top-speed in both flat water and choppy foiling conditions. A proven curve that generates enough lift whilst still releasing drag, a key performance component of modern foil racing.
• T-Beam style coned deck shape – Increases light wind power, drive, general stability and nose trim stability at high foiling speeds.
• Reverse Vee bottom shape – Generous vee and double concave configuration in the nose to clear the chop and create a smooth ride especially when touching the nose coming off the foil, transitioning to less vee and dc in the tail for easier tilting of the board angled to the side for earlier planing alongside better glide when touching.
• ‘V4 Vector Cuts’ – Straight line cutout design that facilitates clean and effortless water release for ultra fast planing onto the foil.
• ‘Downwind Dominator’ – Original deck recess area in the middle of the deck gybe area that increases the ability to pump deeper downwind in light wind and have more control overpowered. Fitted with a one piece 6mm deck pad from rail to rail to facilitate comfort and grip without having to fit subsequent footstraps that get in the way during foil gybes and tacks.
• FOIL Tuttle Strong Box – Double the carbon content, double the wall strength and stiffness, double the width compared to a normal tuttle box, and built with a 100% high-density PVC sandwich body. The result – foils stay tight and the box holds the direct feeling performance even after prolonged use.
Summary
High-performance FW class upwind racing board for those sailors who want to perform at their very best.
Specifications
◄ Swipe ►
INVICTUS 74 |
INVICTUS 88 |
INVICTUS 98 |
INVICTUS 108 |
INVICTUS 118 |
INVICTUS 128 |
INVICTUS 138 |
HYPERION 178 |
HYPERION 184 |
HYPERION 204 |
|
---|---|---|---|---|---|---|---|---|---|---|
Technology | Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Pro Elite Carbon |
Length | 229 cm | 235 cm | 235 cm | 235 cm | 235 cm | 228 cm | 228 cm | 218 cm | 220 cm | 220 cm |
Width | 52 cm | 61 cm | 63 cm | 70 cm | 72 cm</td | 81 cm | 85 cm | 91 cm | 91 cm | 100 cm |
Volume | 74 L | 88 L | 98 L | 108 L | 118 L | 128 L | 138 L | 178 L | 184 L | 204 L |
Bottom Shape | DC Reverse Vee | DC Reverse Vee | DC Reverse Vee | DC Vee to Inverse Vee | DC Vee to Inverse Vee | DC Vee to Inverse Vee | DC Vee to Inverse Vee | DC Reverse Vee | DC Reverse Vee | DC Reverse Vee |
Footstrap Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.4 | 2 | 1.2 |
Fin | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied | Not supplied |
Finbox | Short Tuttle | Short Tuttle | Short Tuttle | Short Tuttle | Short Tuttle | Deep Tuttle | Deep Tuttle | Foil Deep Tuttle | Foil Deep Tuttle | Foil Deep Tuttle |
Fin Range | 23-29 cm | 29-33 cm | 30-34 cm | 35-39 cm | 36-40 cm | 40-46 cm | 42-48 cm | All Foil Settings | All Foil Settings | All Foil Settings |
Sail Range | 4.7 – 7.0 m2 | 4.7 – 7.0 m2 | 5.4 – 7.0 m2 | 7.0 – 8.6 m2 | 7.0 – 8.6 m2 | 7.8 – 9.2 m2 | 7.8 – 9.6 m2 | 7.0 – 10 m2 | 7.8 – 10 m2 | 7.8 – 10 m2 |
Weight | 5.0 kg | 5.8 kg | 5.9 kg | 6.5 kg | 6.7 kg | 7.2 kg | 7.6 kg | 8.8 kg | 8.8 kg | 9.4 kg |
