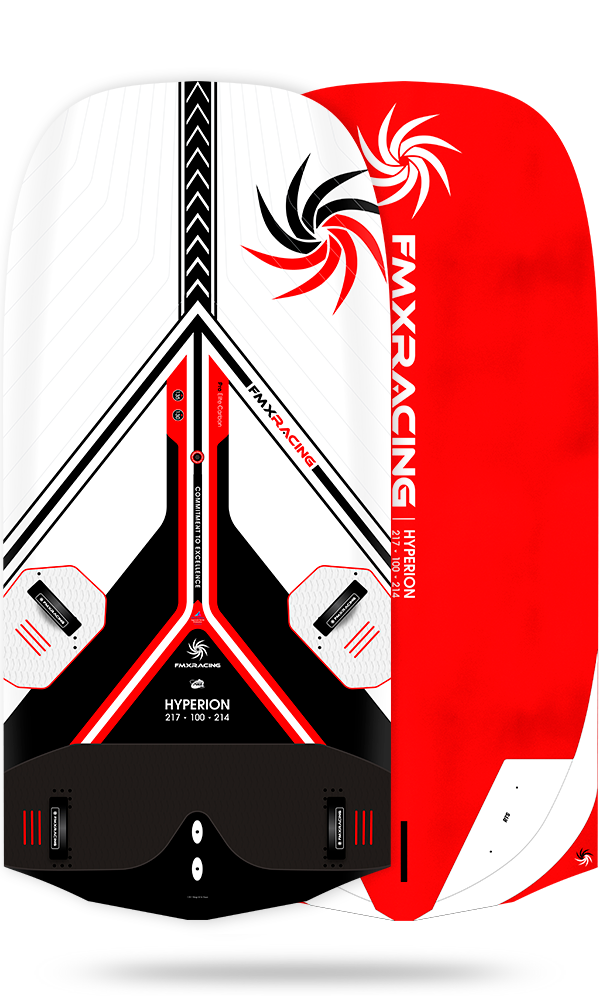

HYPERION 214

Competition
Foil Race

The Hyperion 214 is the new FW Foil Class 100cm wide machine that will take the course racing foil scene by force.

🏆 1st overall Swiss Championships 2022

🏆 4th FW Foil Class Championships 2022

HYPERION 214

Competition Foil Race

The Hyperion 214 is the new FW Foil Class 100cm wide machine that will take the course racing foil scene by force.

🏆 1st overall Swiss Championships 2022

🏆 4th FW Foil Class Championships 2022

R&D Result

More power over the foil due to the massive 99cm tail equates to higher pointing angles upwind and deeper downwind angles especially in under-powered conditions.

AC inspired hull design that is faster through the air.

Features &
Benefits

  Durepox Xtreme ® – America’s Cup grade ultra high-tech bottom paint finish currently used by Team NZ!
  Proven faster release for that extra ‘slip’ = higher speeds.
 Harder and more durable than normal paint finishes.
  A windsurfing industry first. Taking it to the next level!
  Read about it here:   https://reseneauto.co.nz/marine/team-new-zealand-latest/

•  Ultra compact and very wide nose/tail shape for increased power and angle upwind combined with solid stability downwind. Excellent glide and acceleration in the air. Very early planing due to the clever volume distribution.

•  Revised race foil scoop-rocker line for easier handling, explosive acceleration and top-speed in both flat water and choppy foiling conditions. A proven curve that generates enough lift whilst still releasing drag, a key performance component of modern foil racing.

•  T-Beam style coned deck shape – Increases light wind power, drive, general stability and nose trim stability at high foiling speeds.

•  ‘Gorilla Backfoot Pad’ – Fitted with a one piece 6mm deck pad from rail to rail on the back foot to facilitate comfort and grip during high speed gybe maneuvers.

•  Reverse Vee bottom shape – Generous vee and double concave configuration in the nose to clear the chop and create a smooth ride especially when touching the nose coming off the foil, transitioning to less vee and dc in the tail for easier tilting of the board angled to the side for earlier planing alongside better glide when touching.

•  ‘V4 Vector Cuts  – Straight line cutout design that facilitates clean and effortless water release for ultra fast planing onto the foil and also a quick release when touching down.

•  FOIL Tuttle Strong Box – Double the carbon content, double the wall strength and stiffness, double the width compared to a normal tuttle box, and built with a 100% high-density PVC sandwich body. The result – foils stay tight and the box holds the direct feeling performance even after prolonged use.

Summary

No compromise FW Foil Class racing thoroughbred for those who want to win.

Specifications

◄ Swipe ►

HYPERION
138
HYPERION
158
HYPERION
168
HYPERION
178
HYPERION
214
Technology Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Length 209 cm 211 cm 211 cm 211 cm 217 cm
Width 78 cm 85 cm 85 cm 88 cm 100 cm
Volume 138 L 158 L 168 L 178 L 214 L
Bottom Shape DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Reverse Vee
Footstrap Rows 2 2 2 2 2
Fin Not supplied Not supplied Not supplied Not supplied Not supplied
Finbox Foil Deep Tuttle Foil Deep Tuttle Foil Deep Tuttle Foil Deep Tuttle Foil Deep Tuttle
Fin Range All Foil Settings All Foil Settings All Foil Settings All Foil Settings All Foil Settings
Sail Range 4.0 – 7.5 m2 5.5 – 9 m2 5.5 – 9 m2 6.0 – 10 m2 7.8 – 11 m2
Weight 8.0 kg 8.3 kg 8.6 kg 8.8 kg 9.6 kg
