INVICTUS 138

Competition Light-Wind Slalom

Light wind slalom is ultra competitive and small differences in equipment can make big gains on the race course.

The Invictus 138 is the next level design style and a radical departure from the previous technical mind set for this size of board.

🏆 3rd place overall PWA Denmark 2019 – Individual race 1st place

INVICTUS 138

Competition Light-Wind Slalom

Light wind slalom is ultra competitive and small differences in equipment can make big gains on the race course.

The Invictus 138 is the next level design style and a radical departure from the previous technical mind set for this size of board.

🏆 3rd place overall PWA Denmark 2019 – Individual race 1st place

R&D Result

It is not easy to improve a world cup race winning design (Maciek @ Denmark), but this new light wind machine is simply fantastic. Fast, easy and with increased rail pressure, resulting in the ability to use smaller fins, thus reducing the drag even further; the r&d result was clear.

Features &
Benefits

•  All-new compact shape for increased control overpowered, earlier planing, better glide and increased acceleration away from the gybes.

•  Refined all-new scoop-rocker line for easier handling, explosive acceleration and top-speed in both flat water and choppy conditions.

•  All-new Deep deck concave design  – More stability in the now flatter standing area with the front foot after the gybe improves the planing and acceleration away from the mark. New design quick transition deep recess around the mast box increases downforce and nose trim stability at high speed and lift/fin drive at low speed for all sizes.

•  Inverse Vee bottom shape – Generous vee and double concave configuration in the nose to clear the chop and create a smooth ride, transitioning to inverted vee in the tail for increased grip and power in the lower wind range and better control and stable trim when powered.

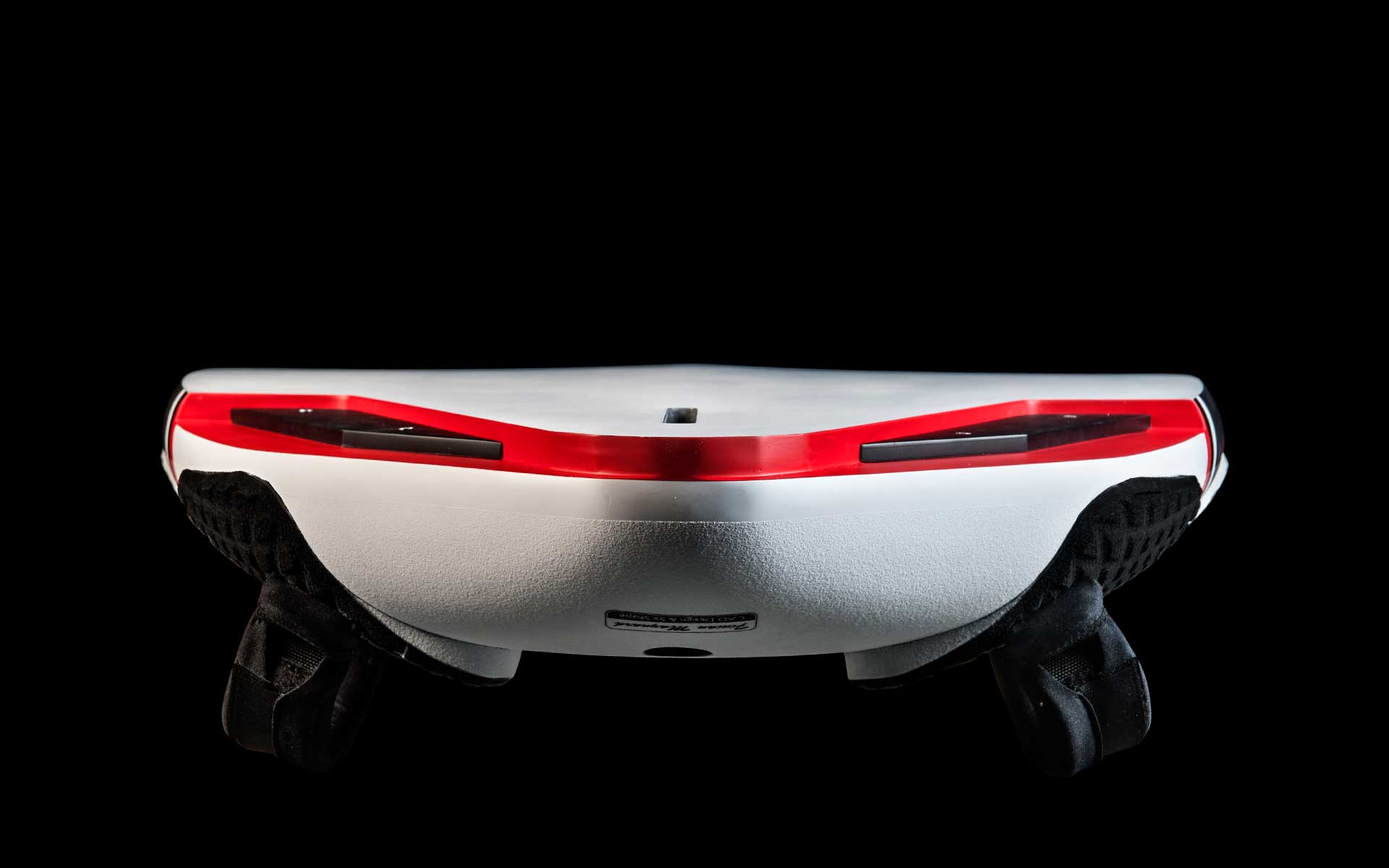

•  ‘V3 Vector Cuts’ – All-new adjustable straight line cutout design that facilitates clean and effortless water release. Removable plates – The next level in terms of performance and range.

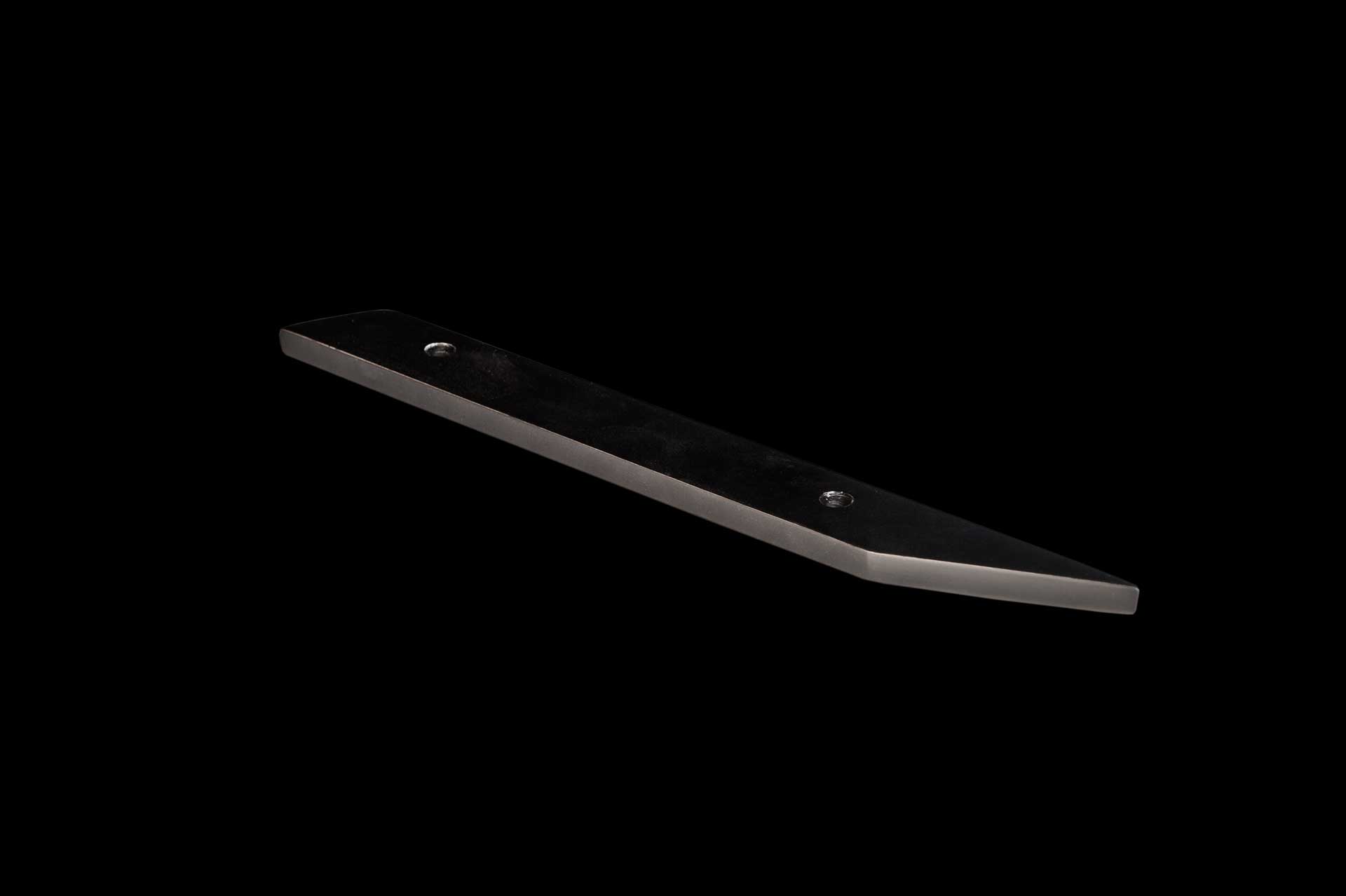

•  RTS – Range Trim System – 100% carbon/high-density pvc core removable cutout plates – Significantly increases the range by 20% of all slalom and speed models – Plates in results in ultra early planing and increased control of the nose trim in overpowered conditions – Plates out and feel the instant burst of acceleration and top speed in the normal wind ranges.

•  Deep Tuttle Strong Box – Double the carbon content, double the wall strength and stiffness, and built with a 100% high-density PVC sandwich body. The result – fins stay tight and the box holds the direct feeling performance even after prolonged use.

*Available with Foil Tuttle Strong Box.

Summary

Power through the 7-knot lulls with extra glisse and ease, whilst simultaneously being able to handle 20-knots of wind with stability and control, this design has it all.

Whether sailing on mirror flat water or in the mountainous chop of the North Sea, the Invictus 138 will stay predictable and stable under your feet.

Specifications

◄ Swipe ►

INVICTUS
74
INVICTUS
88
INVICTUS
98
INVICTUS
108
INVICTUS
118
INVICTUS
128
INVICTUS
138
HYPERION
184
Technology Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Pro Elite
Carbon
Length 229 cm 235 cm 235 cm 235 cm 235 cm 228 cm 228 cm 220 cm
Width 52 cm 61 cm 63 cm 70 cm 72 cm</td 81 cm 85 cm 91 cm
Volume 74 L 88 L 98 L 108 L 118 L 128 L 138 L 184 L
Bottom Shape DC Reverse Vee DC Reverse Vee DC Reverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Vee to Inverse Vee DC Reverse Vee
Footstrap Rows 2 2 2 2 2 2 2 2
Fin Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied Not supplied
Finbox Short Tuttle Short Tuttle Short Tuttle Short Tuttle Short Tuttle Deep Tuttle Deep Tuttle Foil Deep Tuttle
Fin Range 23-29 cm 29-33 cm 30-34 cm 35-39 cm 36-40 cm 40-46 cm 42-48 cm All Foil Settings
Sail Range 4.7 – 7.0 m2 4.7 – 7.0 m2 5.4 – 7.0 m2 7.0 – 8.6 m2 7.0 – 8.6 m2 7.8 – 9.2 m2 7.8 – 9.6 m2 7.8 – 10 m2
Weight 5.0 kg 5.8 kg 5.9 kg 6.5 kg 6.7 kg 7.2 kg 7.6 kg 8.8 kg

Notes

• Weight tolerance is +/- 6%
• Hull weight does not include adjustable cutout plates
• Hull weight includes 12 extra single footstrap plugs (8 for straps, 4 for cutouts). This adds 100g so keep this in mind when comparing weights.
• For Foil Tuttle Strong Box option add +200g
